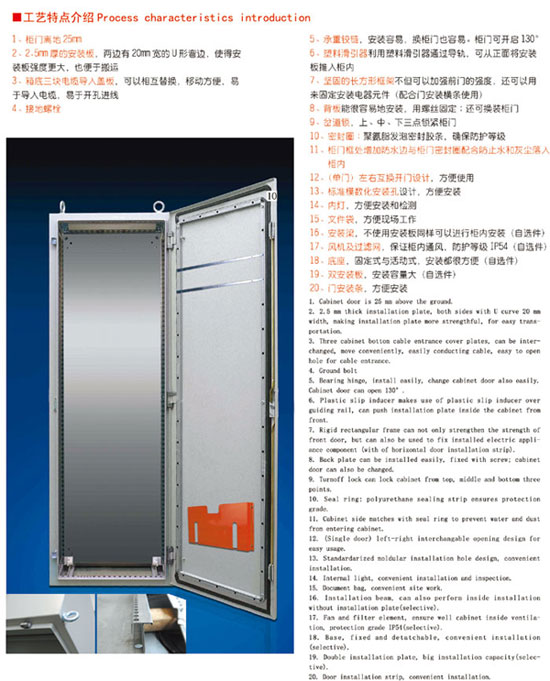

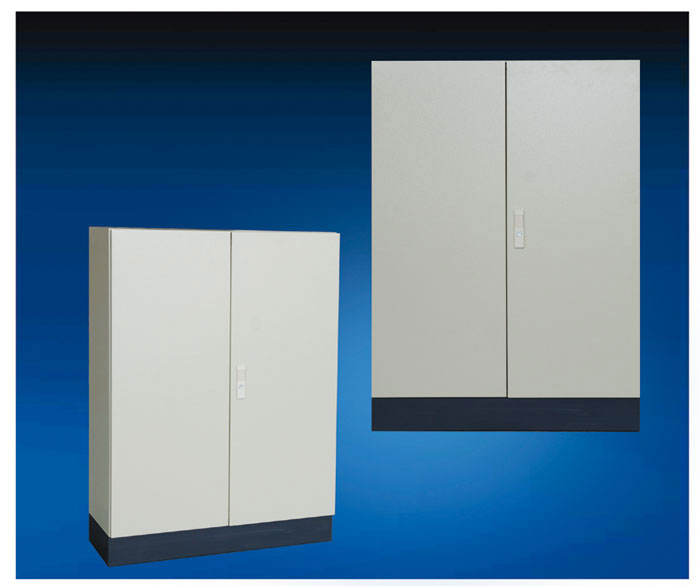

“巴合曼”ES豪华立式控制柜,工艺特点介绍
1、柜门离地25mm

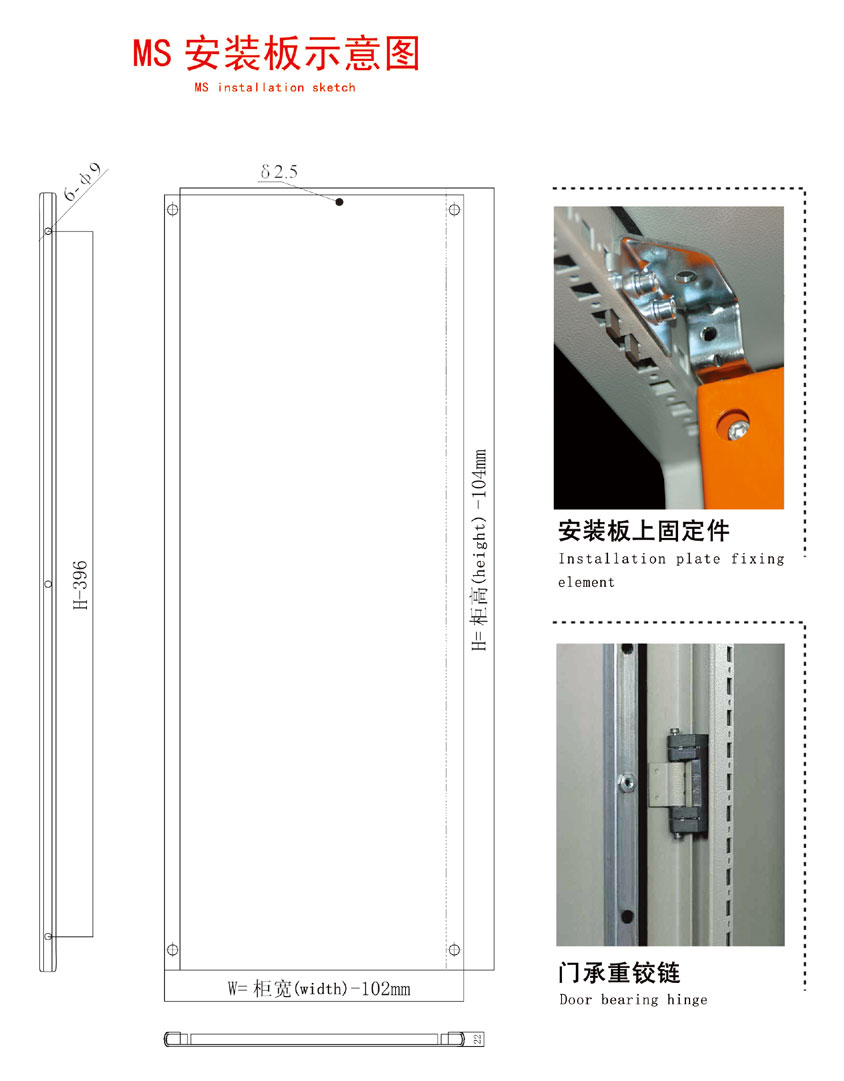

2、2.5mm厚的安装板，两边有20mm宽的U形弯边，使得安装板强度更大，也便于搬运
3、箱底三块电缆导入盖板，可以相互替换，移动方便，易于导入电缆，易于开孔进线
4、接地螺栓
5、承重铰链，安装容易，换柜门也容易。柜门可开启130°
6、塑料滑引器利用塑料滑引器通过导轨，可从正面将安装板推入柜内

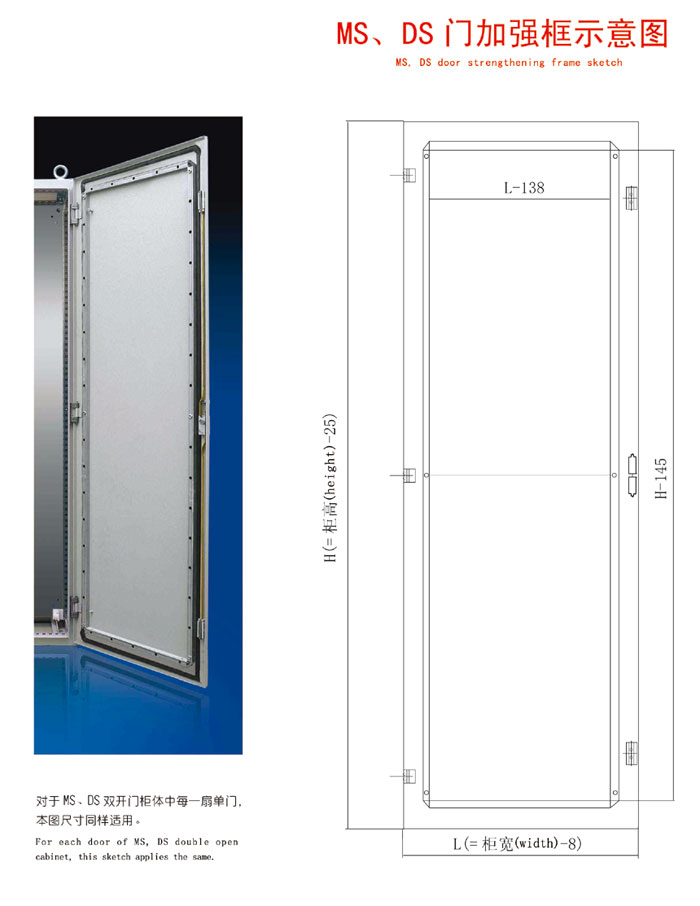

7、坚固的长方形框架不但可以加强前门的强度，还可以用来固定安装电器元件（配合门安装横条使用）
8、背板能很容易地安装，用螺丝固定；还可换装柜门
9、岔道锁，上、中、下三点锁紧柜门
10、密封圈：聚氨脂发泡密封胶条，确保防护等级
11、箱边与密封圈配合防止水和灰尘落入柜内
12、（单门）左右互换开门设计，方便使用
13、标准模数化安装孔设计，方便安装
14、内灯，方便安装和检测
15、文件袋，方便现场工作
16、安装梁，不使用安装板同样可以进行柜内安装（自选件）
17、风机及过滤网，保证柜内通风，防护等级IP54（自选件）
18、底座，固定式与活动式，安装都很方便（自选件）
19、双安装板，安装容量大（自选件）
20、门安装条，方便安装
1. Cabinet door is 25 mm above the ground.
2. 2.5 mm thick installation plate, both sides with U curve 20 mm width, making installation plate more strengthful, for easy transportation.
3. Three cabinet bottom cable entrance cover plates, can be interchanged, move conveniently, easily conducting cable, easy to open hole for cable entrance.
4. Ground bolt
5. Bearing hinge, install easily, change cabinet door also easily. Cabinet door can open 130°.
6. Plastic slip inducer makes use of plastic slip inducer over guiding rail, can push installation plate inside the cabinet from front.
7. Rigid rectangular frame can not only strengthen the strength of front door, but can also be used to fix installed electric appliance component (with of horizontal door installation strip).
8. Back plate can be installed easily, fixed with screw; cabinet door can also be changed.
9. Turnoff lock can lock cabinet from top, middle and bottom three points.
10. Seal ring: polyurethane sealing strip ensures protection grade.
11. Cabinet side matches with seal ring to prevent water and dust from entering cabinet.
12. (Single door) left-right interchangable opening design for easy usage.
13. Standardarized moldular installation hole design, convenient installation.
14. Internal light, convenient installation and inspection.
15. Document bag, convenient site work.
16. Installation beam, can also perform inside installation without installation plate(selective).
17. Fan and filter element, ensure well cabinet inside ventilation, protection grade IP54(selective).
18. Base, fixed and detatchable, convenient installation (selective).
19. Double installation plate, big installation capacity(selective).
20. Door installation strip, convenient installation.
序号
规格型号
高
宽
深
序号
规格型号
高
宽
深
01
ES166040
1600
600
400
17
ES201080
2000
1000
800
02
ES168050
1600
800
500
18
ES201260
2000
1200
600
03
ES161250
1600
1200
500
19
ES201280
2000
1200
800
04
ES186040
1800
600
400
20
ES201250
2000
1200
500
05
ES186050
1800
600
500
21
ES217050
2100
700
500
06
ES187050
1800
700
500
22
ES226050
2200
600
500
07
ES188050
1800
800
500
23
ES228050
2200
800
500
08
ES188040
1800
800
400
24
ES221050
2200
1000
500
09
ES181040
1800
1000
400
25
ES221250
2200
1200
500
10
ES181240
1800
1200
400
26
ES226060
2200
600
600
11
ES206050
2000
600
500
27
ES228060
2200
800
600
12
ES208050
2000
600
500
28
ES221060
2200
1000
600
13
ES201050
2000
1000
500
29
ES221260
2200
1200
600
14
ES201060
2000
1000
600
30
ES228080
2200
800
800
15
ES208060
2000
800
600
31
ES221080
2200
1000
800
16
ES206060
2000
600
600
32
ES221280
2200
1200
800
、安装板一块
2、门安装条两根
3、文件袋一个
4、安装纵梁两根
5、内灯、开关一套
6、前单开门后背板
7、简易包装
1. One installation plate
2. Two door installation strips
3. One document bag
4. Two installation stringers
5. A set of internal light and switch
6. Single front opening door back plate
7. Simple packing
