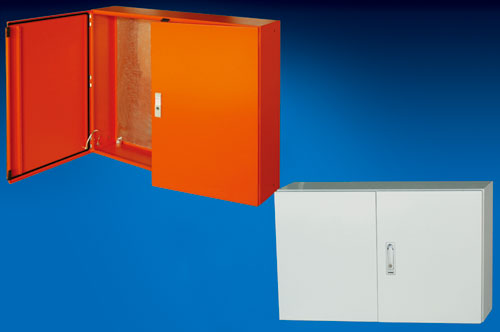

“巴合曼”AK立(壁挂)式控制箱工艺特点介绍
1、安装嵌条 已打好装配孔的嵌条垂直焊接在箱门的两旁，使用M4自攻螺丝，方便安装
2、密封圈 聚氨脂发泡封胶条密封性能可靠
3、门可开启110°
4、槽型箱边 防止灰尘和水进入箱内，并能够完好地与密封圈 配合，形成对箱内的防护
5、壁挂孔 箱体背板已打好安装壁挂的孔眼，方便安装
6、（单开）门可左右互换安装
7、颜色RAL7032、RAL7035或按客户要求定制（电脑灰、电脑白）
8、材料 冷轧钢板门2.0mm 箱体1.2-1.5mm 安装板2.5mm（镀锌）
9、防护等级IP56
10、安装板也可用桔黄色平光粉
11、表面处理：磷化、喷粉
1. Install panel strip
Weld panel strip with assemble holes perpendiculy to the sides of cabinet door, use M4 self tapping screw for easy installation.
2. Seal ring
Polyurethane foaming seal strip seals relibly.
3. Door can open 110 °.
4. Slot cabinet side
Prevent dust and water from entering the cabinet, and can seal completely with sealing strip.
5. Wall mounting hole
Cabinet backboard Perforated for easy installation of wall mounted holes and with mounting piece.
6. (Single opening) door can change from left to right.
7. Color RAL7032, RAL7035 or customer selection
(computer grey, computer white)
8. Material
Cold rolled steel plate
Door 2.0 mm
Cabinet body 1.2-1.5 mm
Installation plate 2.5 mm(galvanized)
9. Protection grade IP56
10. Installation plate can also use orange yellow flatting agent
11. Cabinet body surface treatment: phosphating, plastic spraying
1、安装板一块
2、门安装条两根
3、底部进线盖板一块
4、简易包装
1. One installation plate
2. Two door installation strips
3. Abottom entrance convex plate
4. Simple packing
| 序号 | 规格型号 | 高 | 宽 | 深 | 序号 | 规格型号 | 高 | 宽 | 深 |
| 01 | AK6010215 | 600 | 1000 | 215 | 11 | AK108020 | 1000 | 800 | 200 |
| 02 | AK606030 | 600 | 600 | 300 | 12 | AK108030 | 1000 | 800 | 300 |
| 03 | AK766025 | 760 | 600 | 250 | 13 | AK106025 | 1000 | 600 | 250 |
| 04 | AK767621 | 760 | 760 | 210 | 14 | AK101030 | 1000 | 1000 | 300 |
| 05 | AK767630 | 760 | 760 | 300 | 15 | AK126025 | 1200 | 600 | 250 |
| 06 | AK761021 | 760 | 1000 | 210 | 16 | AK126030 | 1200 | 600 | 300 |
| 07 | AK761030 | 760 | 1000 | 300 | 17 | AK121030 | 1200 | 1000 | 300 |
| 08 | AK806025 | 800 | 600 | 250 | 18 | AK141030 | 1400 | 1000 | 300 |
| 09 | AK806030 | 800 | 600 | 300 | 19 | AK146035 | 1400 | 600 | 350 |
| 10 | AK808030 | 800 | 800 | 300 | 20 | AK147035 | 1400 | 700 | 350 |
